Kartt 11500lbs 12v Electric Winch Synthetic Rope.

11500 lbs 42.3kN 12V Winch Synthetic Rope / UHMWPE (ultra-high molecular weight polyethylene ) with Heavy Duty Wired Wireless Controller for light trailers and 4x4s.

All KARTT winches are EN14492:1 Compliant for professional use and waterproof rated to IP 67.

These winches are supplied with a unique and handy wired controller that has a detachable power cord, transforming it to a wireless remote control unit.

Our product information details the full installation kit provided with each unit along wtih a comprehensive User Guide for winching safely. KARTT electric winches are exceptionally good value for money and at KARTT we underpin the remarkable product quality with outstanding after sales support and a range of accessories and spares.

P/NWK11512S

Max pulling force5216 kg

Supply voltage: 12 V
Gearing: 3-stage planetary
Gear ratio:265:1
Clutch lever: manual
Brake: automatic 100% Load Holding
Rope: wire 9.5mm x 24m with hook
Remote: wired & wireless
Installed weight:30.4 kg
Gross/Shipping weight:31.8 kg
Certificate: CE

ROPE SPEED | POWER CONSUMPTION IN A
Line Pull 0 kg 6.8 m/min, 74A
Line Pull 5216 kg 1.46 m/min, 350A

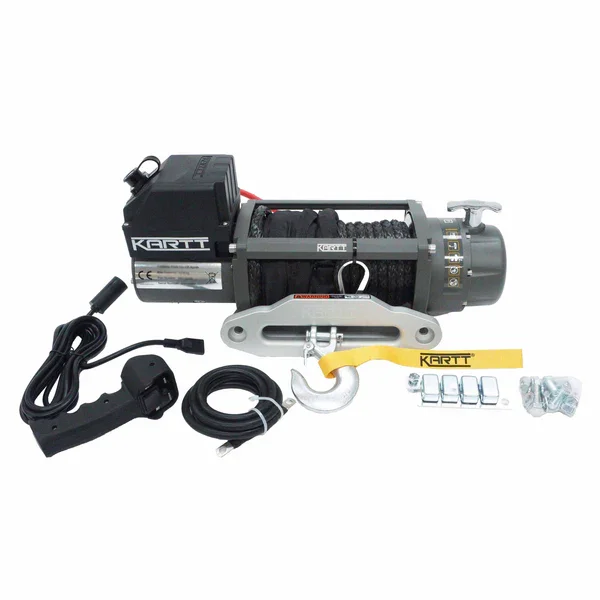

INCLUDES
Winch
Hawse fairlead
Synthetic rope with hook
Wired/wireless hand held remote control
Wired switch

RECOMMENDED ACCESSORIES
Neoprene winch cover
Mounting Plate

Bolt Hole Mounting Centres  254mm x 114.3

Outer Case Dimensions59.5 x 31.5 x 31cm
